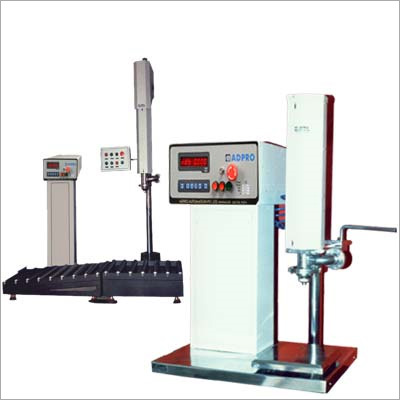

Tin Filling Machine

Tin Filling Machine
Tin Filling Machine
Product Code : 03
Product Description

We are counted amongst the foremost manufacturers and suppliers of excellent quality Tin Filling Machine. It is extensively used in various industries for loading beverages, food, paints and other liquid materials in jar, can, tin, and drum. This offered machine is manufactured using high grade raw material under the supervision of our experts in adherence with set industry standards. Our offered Tin Filling Machine is easily available for distinguished size industries like small, medium and large scale.

Features:

  • Latest Micro controller based design
  • Rugged construction
  • Heavy Duty Load cell for rough handling
  • Stainless Steel Valve with PTFE seating
  • Coarse and fine feed for better accuracy
  • User friendly
  • Auto calibration
  • High internal count greater than 2,00,000 counts
  • Sigma Delta conversion
  • Inbuilt Real Time clock with watch Dog Circuit
  • Data retention in memory even power failure
  • Gross/Net Filling.

Specifications:

Capacity: Resolution

  • 7kg: 2g
  • 30kg: 10g
  • 50kg: 10g

Fill Accuracy :Better than + / - 0.1% FSR
Display: 13 mm height (7 segments LED)
Load Sensor :Strain Gauge Based Load sensor
Fill Mode :Auto/Manual
No of Fillings :3 fillings per minute
Fill Valve :SS with PTFE Lining
Operating Temp :5-50 degree C
Operating Pressure :6-8 bar
Power Supply :230v Ac, 50 Hz +/- 10%
System Dimension (mm) :800 x 500 x 1200

Applications:
Edible Oils/Lubricants /Paints/Chemicals & Other Liquids

Options:
Printer Interface/Computer Interface /Remote Display/ Higher Capacity/Flame Proof

Drum Filling Machine

Features:

  • Latest Micro Controller based design
  • Rugged construction
  • Heavy Duty Load cell for rough handling
  • Stainless Steel Valve with PTFE coating
  • Coarse and fine feed for better accuracy
  • Auto calibration
  • High internal count greater than 2,00,000 counts
  • Inbuilt Real Time clock with watch Dog Circuit
  • Data retention in memory even power failure
  • Gross/Net filling.
  • Top Rollers and side roller conveyor for easy handling of drums
  • In-Mouth filling & hence no spillage
  • Local control panel for easy Operation.

Specifications:

Capacity: Resolution

  • 100kg: 20g
  • 200kg: 50g
  • 300kg: 50g
  • 500kg: 100g

Fill Accuracy : Better than + / - 0.1% FSR
Display : 13 mm height (7 segments LED)
Load Sensor :Strain Gauge Based Load sensor
Fill Mode:Auto/Manual
No. of Fillings:1 fillings per minute (Depends on the flow available)
Fill Valve: SS with PTFE Lining
Operating Temp: 5-50 degree C
Operating Pressure: 6-8 bar
Power Supply: 230v Ac, 50 Hz +/- 10%
Platform Size (mm): 650 x 650

Applications:
Edible Oils, Lubricants, Paints, Chemicals & Other Liquids

Options:
Printer interface, Computer interface, Remote Display, Higher Capacity, Flame Proof
